| Overall Length : |
9 '10" (300cm) |
|
|
| Overall Width : |
5' (153cm) |
|
|
| Number of chambers : |
3+1 (Bow, Starboard, Portside) + Keel |
|
|
| Inside widthInside width between port and starboard : 26 inches (66.04 cm) |
26 inches (66.04 cm) |
|
|
| Inside lengthInside length from bow to transom: 6.3' (191cm) |
6.3' (191cm) |
|
|
| Tube diameterPontoon diameter: 16.4" (42 cm) |
16.4" (42 cm) |
|
|
| Max person capacity : |
4 persons |
|
|
| Max engine power : |
10 hp ( 7 KW) SHORT SHAFT - 15 inches |
|
|
| Max engine weightOutboard engine and related equipment total weight: 110 Lbs (50 Kg) |
110 Lbs (50 Kg) |
|
|

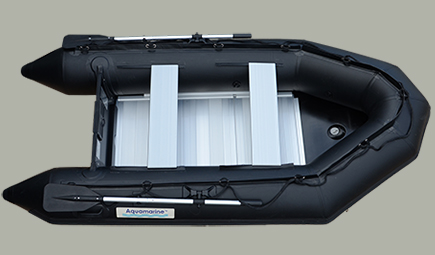

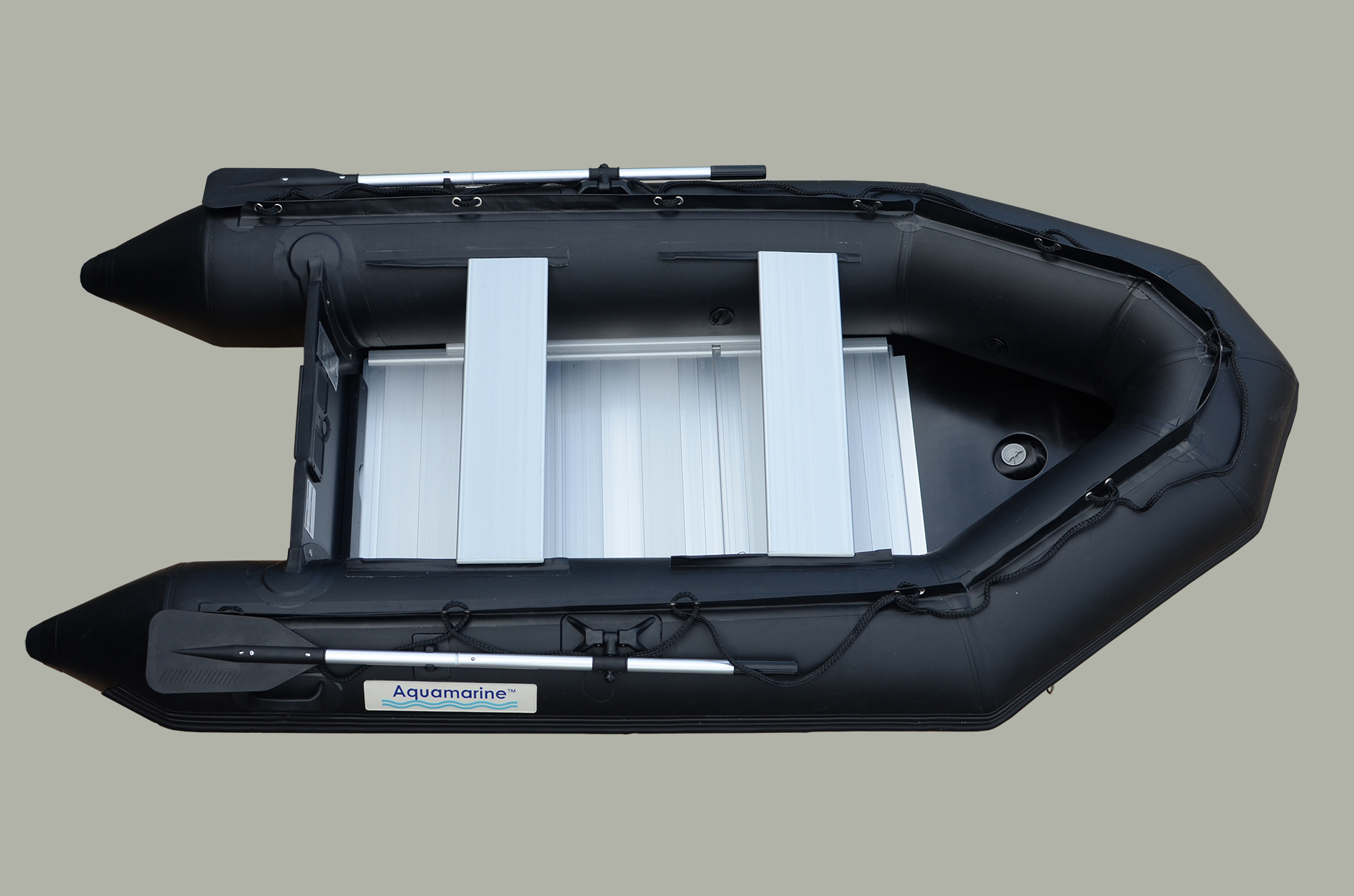

| Floor Material : : |
3 x Aluminum floorboards / bow - plywood fl |
|
|
| Max load capacity : |
792 Lbs (359 kg) |
|
|
| Max Tube PressureMaximum tube air pressure (Pression de tube): 3.6 psi (25 Kpa) or 0.25 Bar |
3.6 psi (25 Kpa) or 0.25 Bar |
|
|
| Tubes and hull material Inflatable Boat Fabric and finished thickness: 1.2 mm PVC coated -1200 Dtex polyester fabric |
1.2 mm PVC coated -1200 Dtex polyester fabric |
|
|
| Hull unit weightWeight of the hull of vessel NOT including floor, oars, ets : 75 Lbs (34 kg) |
75 Lbs (34 kg) |
|
|
| Boat weightWeight of the vessel including deck, railings, seats,oars: 121 lbs (55 kg) |
121 lbs (55 kg) |
|
|
